Editing Legend Data

Editing Legend Data


Editing Legend Data

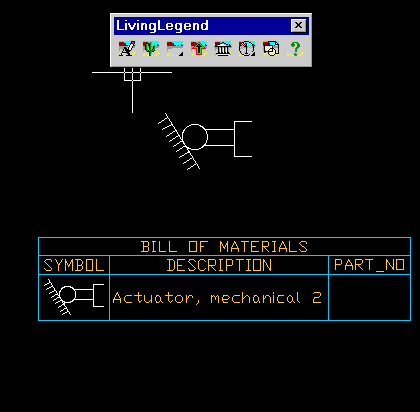

Use the EDITLEGEND tool to change any legend data related to symbols balloons or connections. You may select a legend entry or the symbol itself to edit the legend data.

The fields that appear in the edit dialog are the current columns set in SETUPLEGEND.

New attributes are added to symbol definitions automatically as soon as a value is entered.

Use this tool INSTEAD of AutoCAD's attribute editing commands, as it maintains the associations between the various entities.

Also see Editing Connection Attributes.
